Toyota Sienna Service Manual: Underdrive clutch

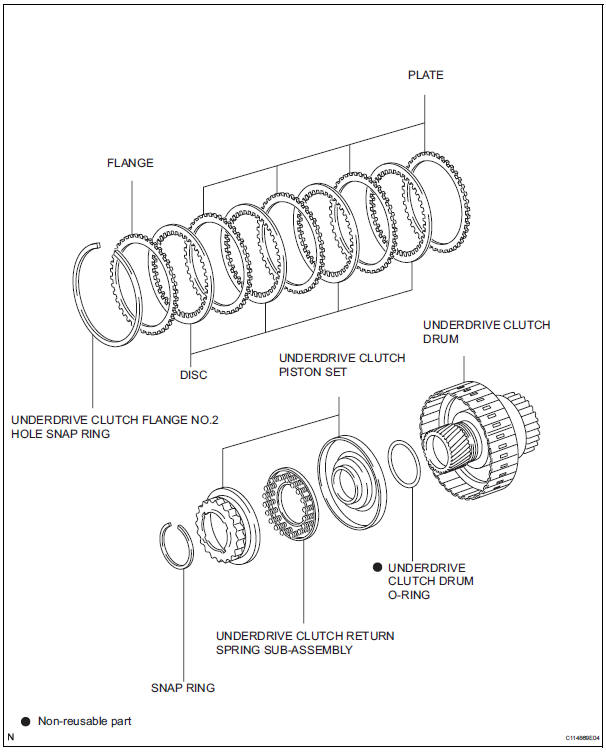

COMPONENTS

Underdrive clutch

Disassembly
1. INSPECT UNDERDRIVE PACK CLEARANCE HINT: (See page AX-262) 2. REMOVE UNDERDRIVE CLUTCH FLANGE NO.2 HOLE SNAP RING a) Using a screwdriver, remove the underdrive clutch flange No.2 snap rin ...
