Toyota Sienna Service Manual: Valve body assembly

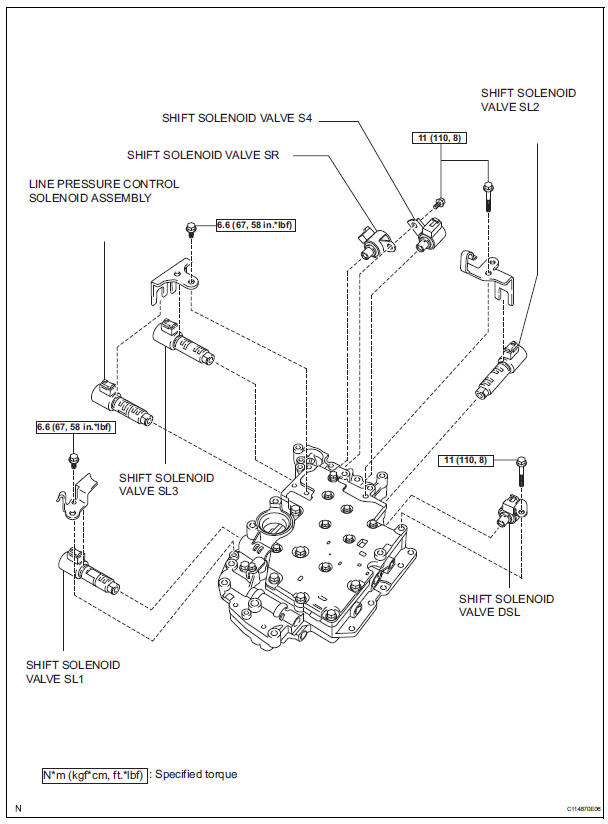

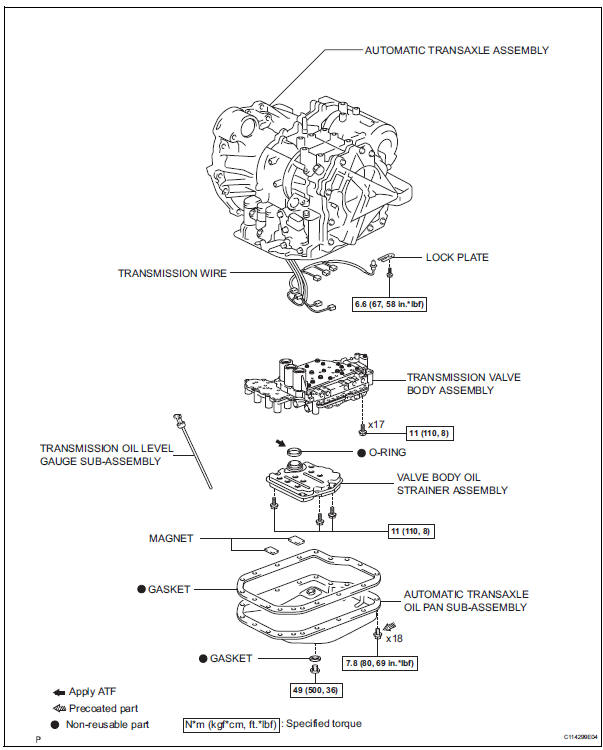

Components

Valve body assembly

Valve body assembly

Installation
1. INSTALL TRANSMISSION WIRE (a) Coat the O-ring of the transmission wire connector with ATF and install it. (b) Install the transmission wire with the bolt. Torque: 5.4 N*m (55 kgf*cm, 48 ...

Removal
1. Remove engine under cover no.1 2. Disconnect cable from negative battery terminal 3. Drain automatic transaxle fluid (see page ax-131) 4. Remove automatic transaxle oil pan subassembly (a ...
