Toyota Sienna Service Manual: Inspection

1. INSPECT PURGE VSV

INSPECT PURGE VSV

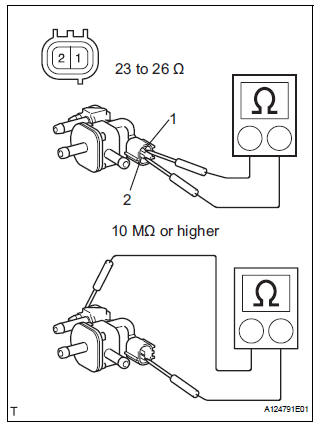

(a) Measure the resistance of the purge VSV.

Standard resistance

If the result is not as specified, replace the purge VSV.

 INSPECT PURGE VSV

(b) Check the operation of the purge VSV.

(1) Check that air does not flow from port E to port F.

 INSPECT PURGE VSV

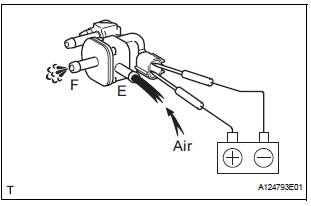

(2) Apply battery voltage across the terminals.

(3) Check that air flows from port E to port F.

If the result is not as specified, replace the purge VSV.

Removal
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL 2. REMOVE V-BANK COVER SUB-ASSEMBLY (See page EM-28) 3. REMOVE PURGE VSV (a) Disconnect the purge VSV connector. (b) Disconnect the 2 pur ...

Installation
1. Install purge vsv (A) install the purge vsv with the bolt. Torque: 10 n*m (102 kgf*cm, 7 ft.*Lbf) (B) connect the 2 vacuum hoses and no. 1 Vacuum switching valve connector. 2. INSTAL ...
