Toyota Sienna Service Manual: Parking brake pedal

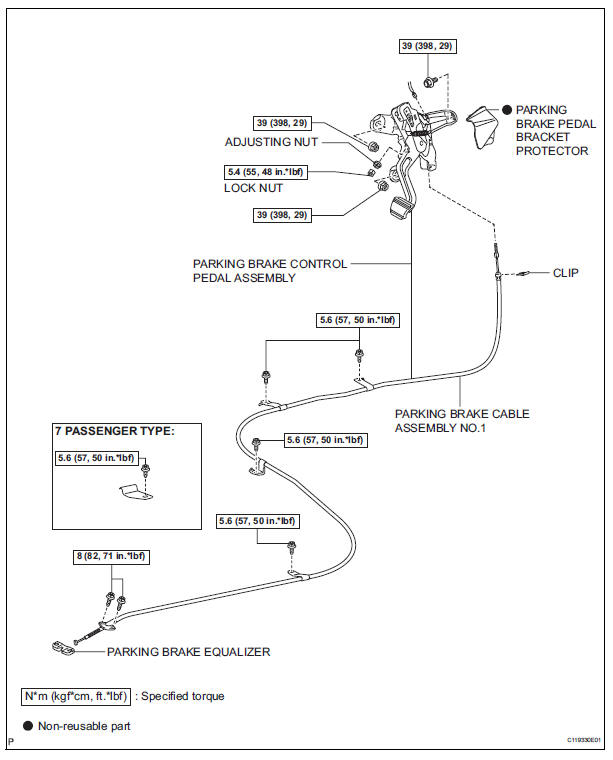

Components

Parking brake pedal

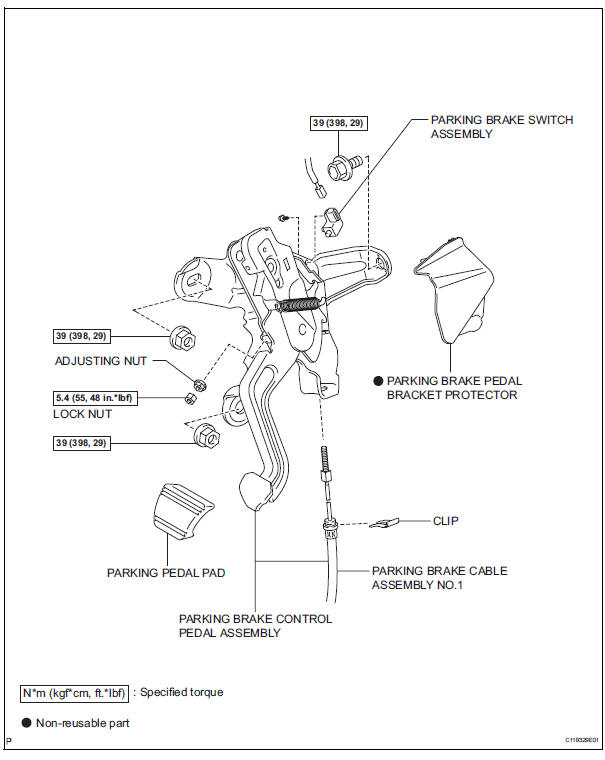

Parking brake pedal

Adjustment
1. REMOVE REAR WHEEL 2. ADJUST PARKING BRAKE SHOE CLEARANCE (See page PB-18) 3. INSTALL REAR WHEEL Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf) 4. INSPECT PARKING BRAKE PEDAL TRAVEL (a) Slowly dep ...

Removal
1. DISCONNECT BATTERY NEGATIVE TERMINAL 2. REMOVE FRONT DOOR SCUFF PLATE LH 3. REMOVE COWL SIDE TRIM BOARD LH 4. REMOVE INSTRUMENT PANEL FINISH PANEL SUBASSEMBLY LOWER LH (See page IP-6) 5. REMOV ...
