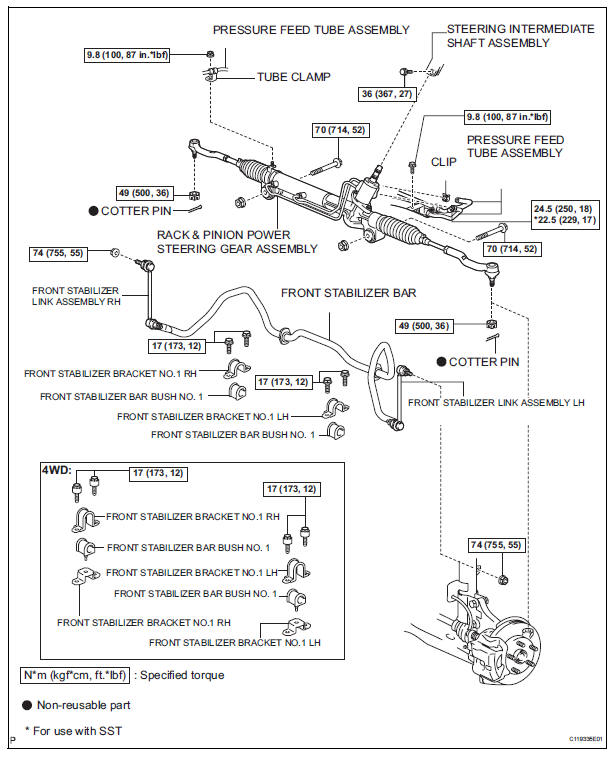

COMPONENTS

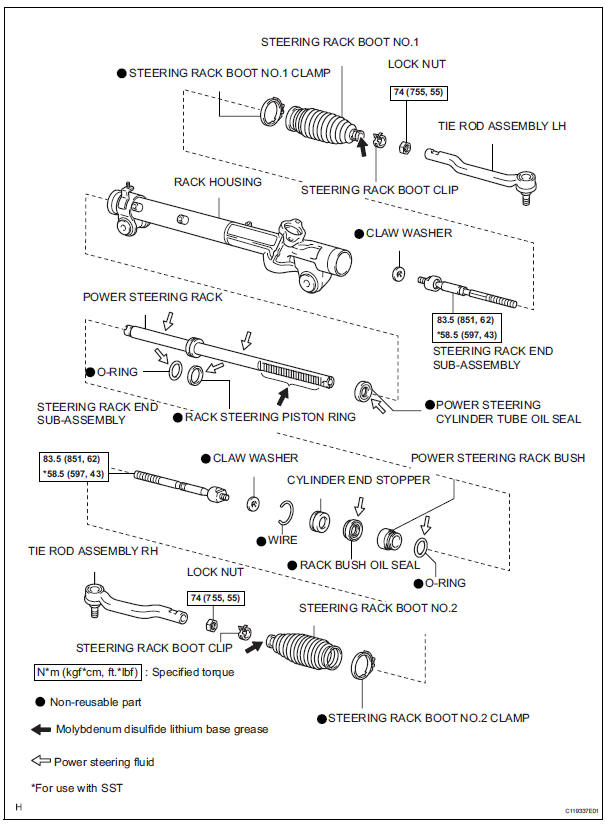

Rack and pinion power steering gear

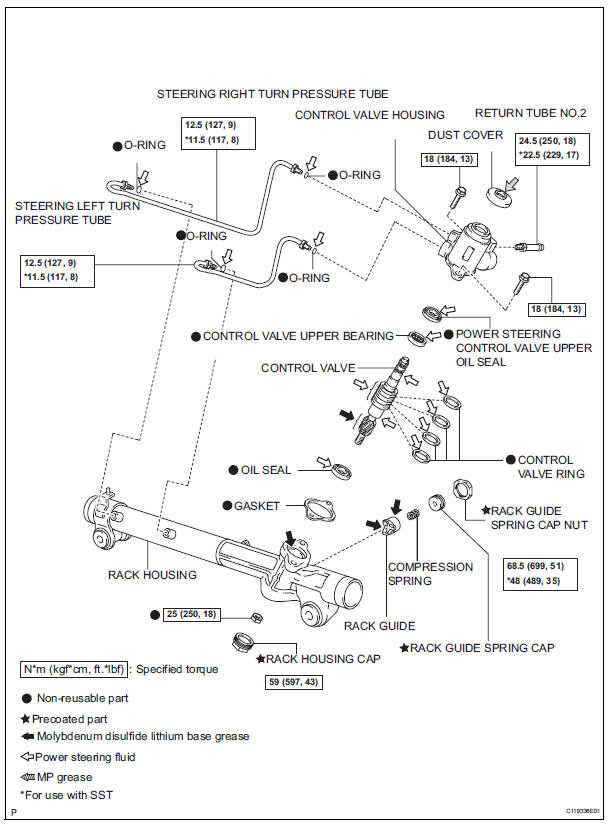

Rack and pinion power steering gear

Rack and pinion power steering gear

Installation
1. INSTALL VANE PUMP ASSEMBLY (a) Temporarily install the bolt to the vane pump assembly. (b) Install the vane pump assembly. (c) Temporarily install the bolt (B). (d) Using SST, tigh ...

Removal
NOTICE: When installing, coat the parts indicated by the arrows with power steering fluid or molybdenum disulfide lithium base grease (See page PS-21). 1. INSPECT CENTER FRONT WHEEL 2. REMOVE FRO ...
