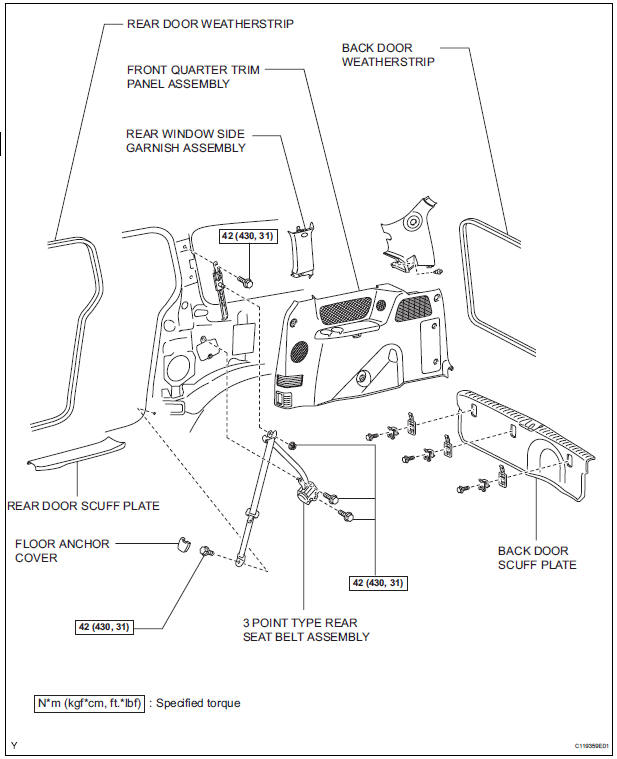

COMPONENTS

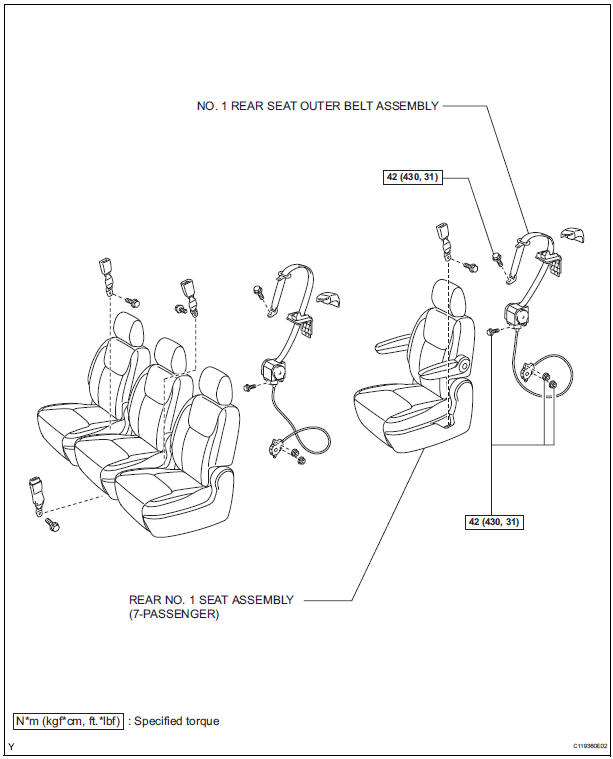

COMPONENTS

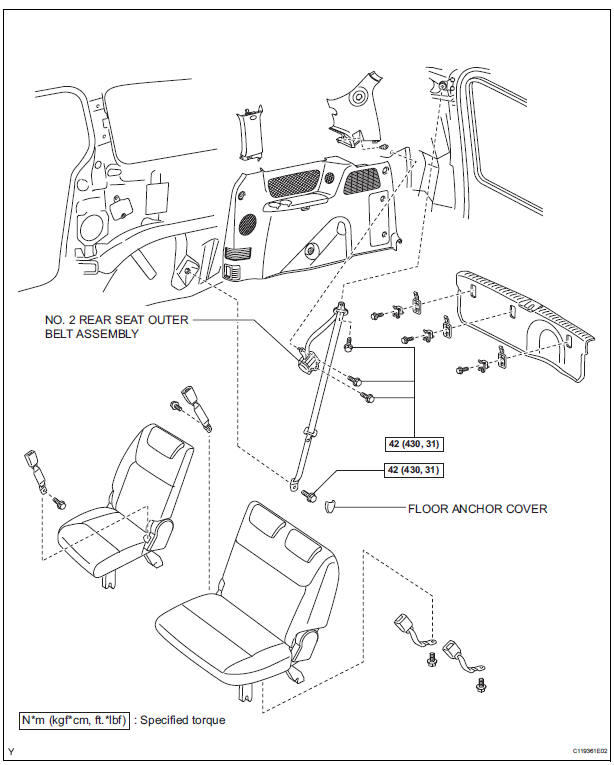

COMPONENTS

COMPONENTS

Installation
1. INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY (for 8-Passenger) HINT: Refer to the instructions for reassembly of the rear No. 1 seat assembly (for center seat).  Install the rear seat ...

Removal
1. REMOVE REAR DOOR SCUFF PLATE 2. REMOVE REAR DOOR WEATHERSTRIP 3. REMOVE BACK DOOR WEATHERSTRIP 4. REMOVE BACK DOOR SCUFF PLATE 5. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY  Remove t ...
