Toyota Sienna Service Manual: Slide door

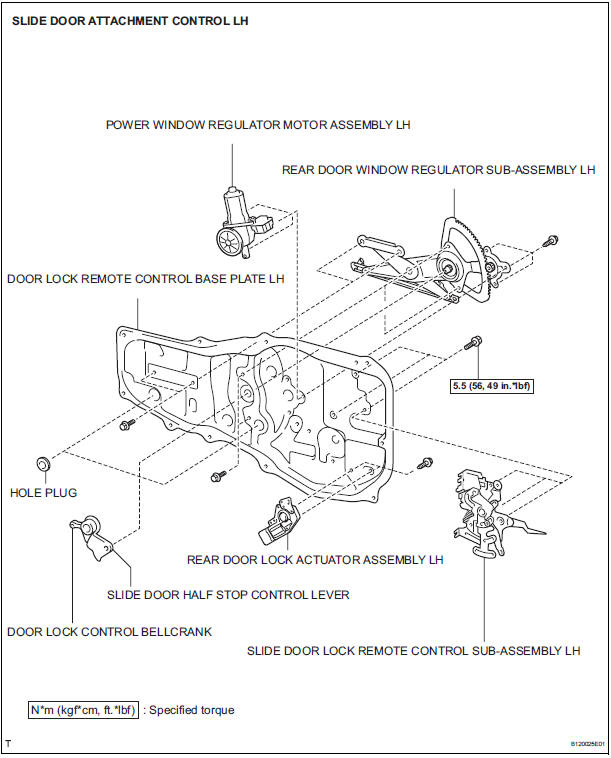

COMPONENTS

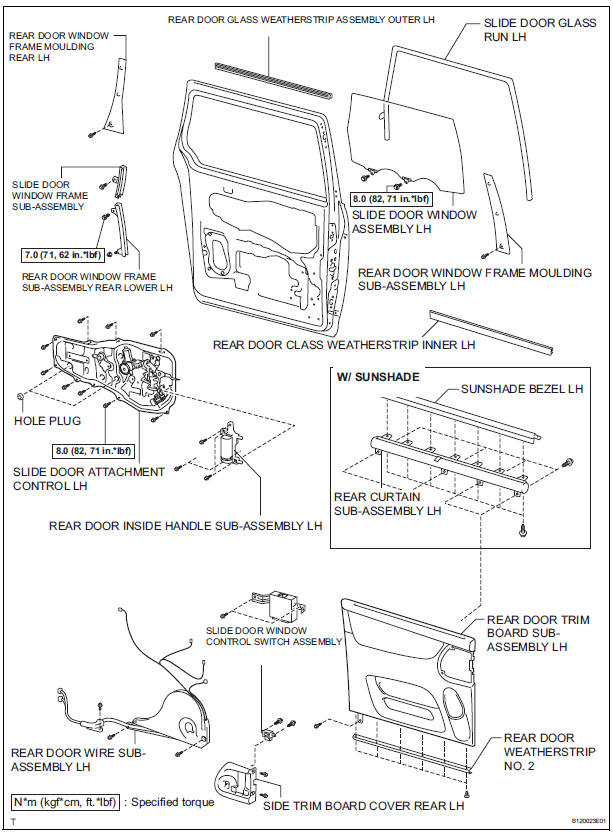

COMPONENTS

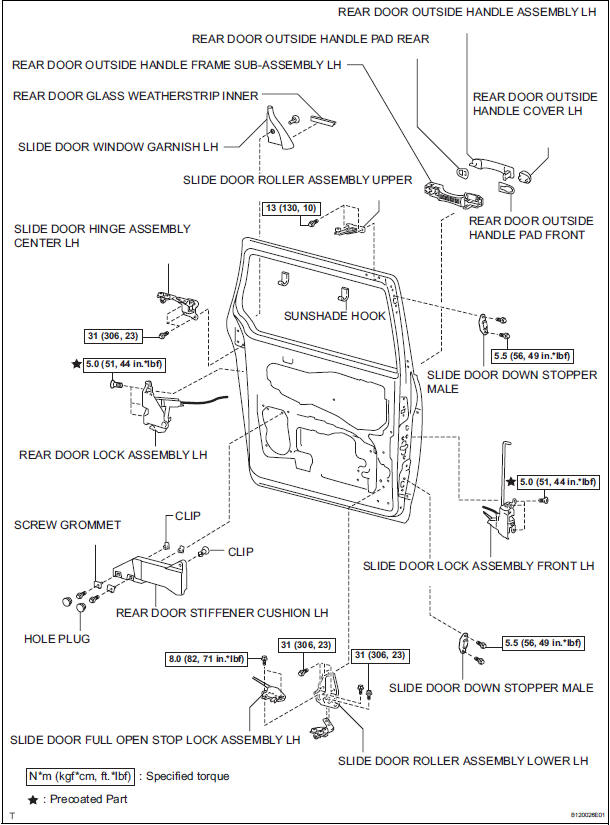

COMPONENTS

COMPONENTS

COMPONENTS

Reassembly
1. INSTALL FRONT DOOR WIRE LH Install the wire with the 2 bolts. Torque: Reference 8.0 N*m (82 kgf*cm, 71 in.*lbf) NOTICE: In order to prevent water leakage, be sure that the lip of t ...

Removal
HINT: On the RH side, use the same procedures as on the LH side. 1. REMOVE SLIDE DOOR Remove the rear door scuff plate (See page IR-7). Remove the back door scuff plate (See page ED- 214 ...
