Toyota Sienna Service Manual: Steering Column Assembly

Toyota Sienna Service Manual / Steering Column / Steering Column Assembly

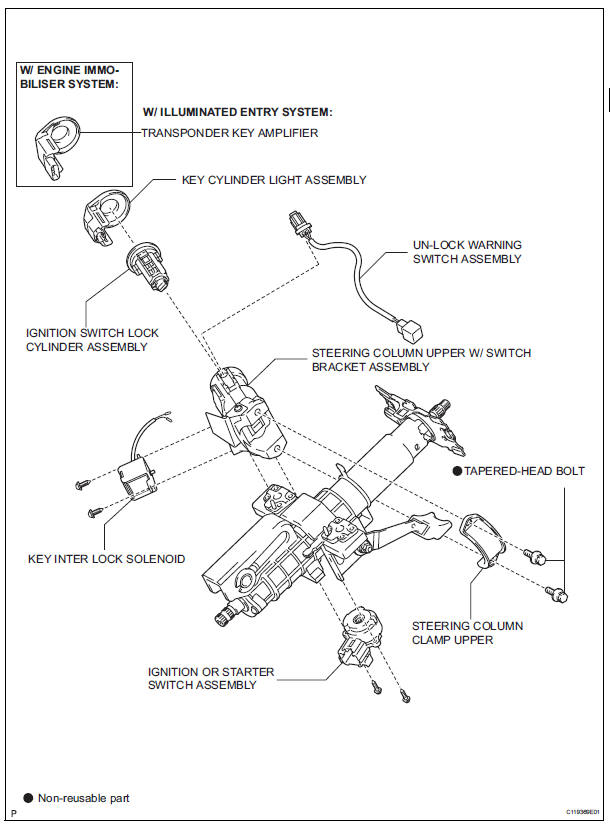

COMPONENTS

Steering Column Assembly

Steering Column Assembly

Repair
1. STEERING OFF CENTER REPAIR PROCEDURE (a) Inspect steering wheel off center. (1) Apply masking tape to the top center of the steering wheel and steering column upper cover. (2) Drive th ...

Removal
1. PRECAUTION HINT: See page RS-1 2. DISCONNECT BATTERY NEGATIVE TERMINAL Wait for 90 seconds after disconnecting the battery terminal to prevent the airbag working. 3. PLACE FRONT WHEELS FACING ...
