Toyota Sienna Service Manual: Windshield glass

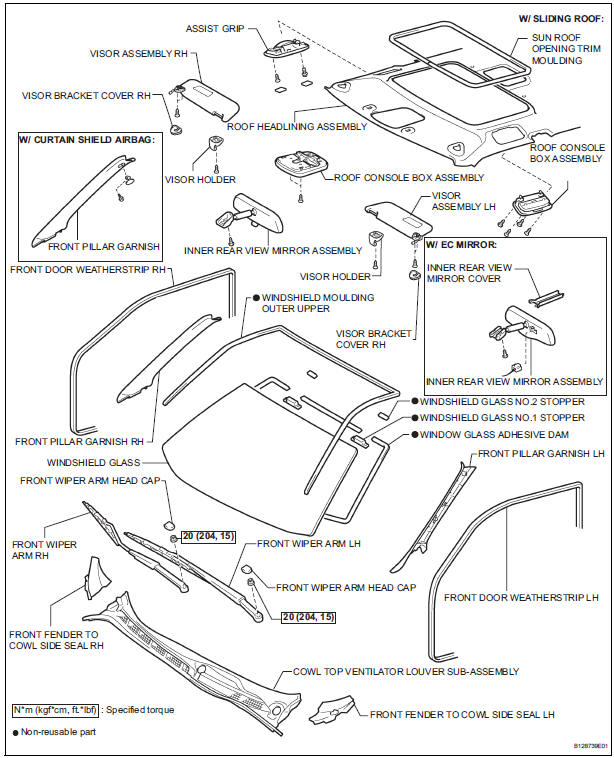

COMPONENTS

COMPONENTS

Power window regulator motor
INSPECTION 1. INSPECT POWER WINDOW REGULATOR MOTOR (FRONT RH)  Remove the power window regulator motor.  Apply battery voltage to the motor connector according to the table bel ...

Removal
1. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH 2. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH 3. REMOVE FRONT PILLAR GARNISH LH 4. REMOVE FRONT PILLAR GARNISH RH 5. REMOVE VISOR ASSEMBLY L ...

Other materials:

Heater relay (for rear air conditioning system)
ON-VEHICLE INSPECTION 1. INSPECT REAR HEATER RELAY (a) Remove the rear heater relay. (b) Measure the resistance according to the value(s) in the table below. Standard resistance If the resistance is not as specified, replace the rear heater relay. ...

Reassembly
1. INSTALL HEATER RADIATOR UNIT SUB-ASSEMBLY (a) Install the heater radiator unit sub-assembly to the air conditioning blower assembly. (b) Install the 2 O-rings to the heater water valve assembly. (c) Install the 3 screws and the heater water valve assembly. (d) Install the 2 s ...

Disassembly
1. REMOVE FRONT SEAT SIDE TABLE LEG COVER (w/ Table)  Using a screwdriver, disengage the claws and remove the seat side table leg cover. HINT: Tape the screwdriver tip before use. 2. REMOVE FRONT SEAT SIDE TABLE (w/ Table)  Remove the 4 nuts and seat side table.  Rem ...
