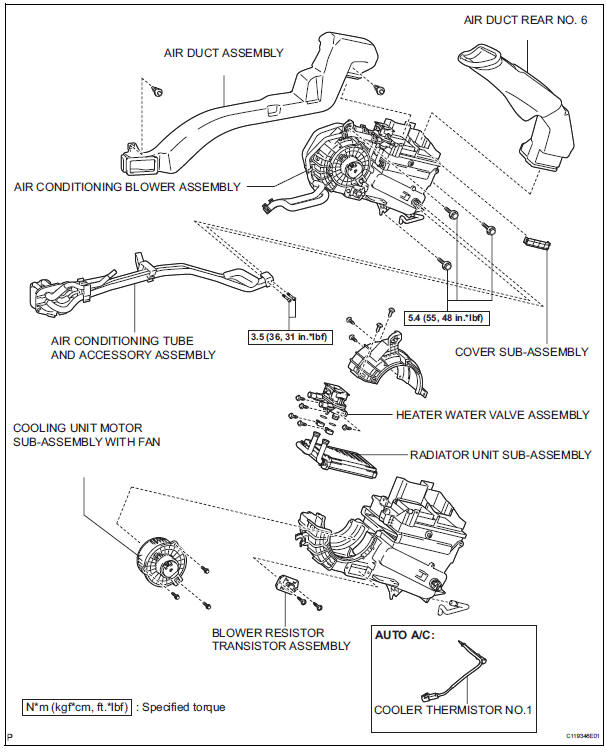

COMPONENTS

Blower unit (for rear air conditioning system)

Installation
1. INSTALL BLOWER ASSEMBLY (a) Install the blower assembly. (b) Install the bolt, the 2 screws and the nut. Torque: Bolt A 9.8 N*m (100 kgf*cm, 87 in.*lbf) (c) Install the 2 clamps and 2 nu ...

Removal
1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM SST 07110-58060 (07117-58080, 07117-58090, 07117-78050, 07117-88060, 07117-88070, 07117-88080) HINT: See page AC-172. 2. REMOVE REAR DOOR SCUF ...
