Toyota Sienna Service Manual: Front brake

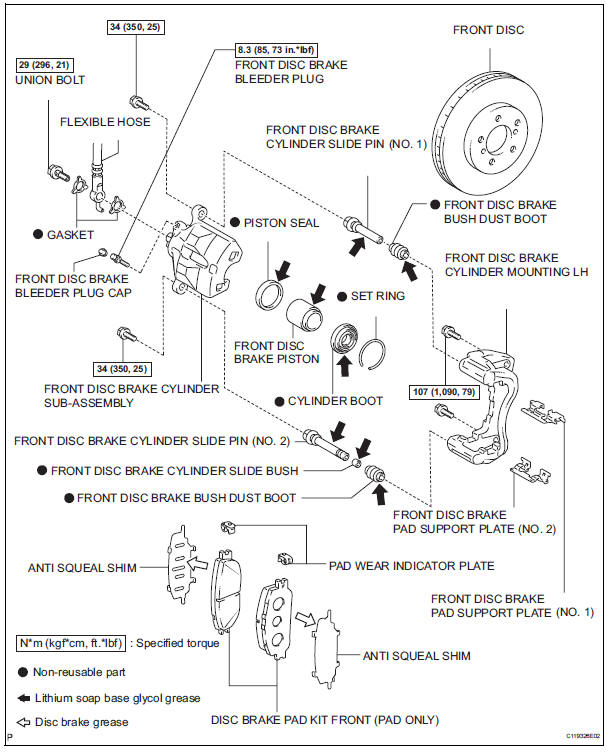

COMPONENTS

Front brake

Installation
1. INSTALL BRAKE VACUUM CHECK VALVE ASSEMBLY (a) Install the brake vacuum check valve assembly and check valve grommet to the brake booster assembly. 2. INSTALL BRAKE BOOSTER GASKET (a) Install ...

Removal
HINT: Remove the RH side by the same procedure as the LH side. 1. REMOVE FRONT WHEEL 2. DRAIN BRAKE FLUID NOTICE: Wash the brake fluid off immediately if it attaches to any painted surface. 3. ...
