Toyota Sienna Service Manual: Canister

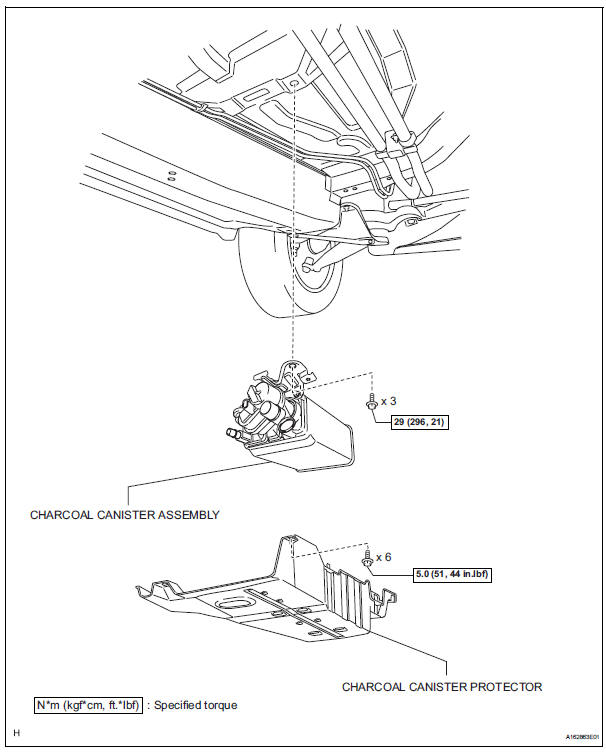

Components

Components

On-vehicle inspection
1. INSPECT FUEL CUT RPM (a) Increase the engine speed to at least 3500 rpm. (b) Use a sound scope to check for injector operating sounds. (c) Check that when the throttle lever is released, i ...

Removal
1. REMOVE CHARCOAL CANISTER PROTECTOR (a) Remove the 6 bolts and charcoal canister protector. 2. REMOVE CHARCOAL CANISTER ASSEMBLY (a) Disconnect the fuel tank vent hose from the charcoal cani ...
