DESCRIPTION
This monitor will run when the engine is started at -10 to 50°C (14 to 122°F) of the engine coolant temperature. The DTC will set after the engine idling for 13 seconds (2 trip detection logic).

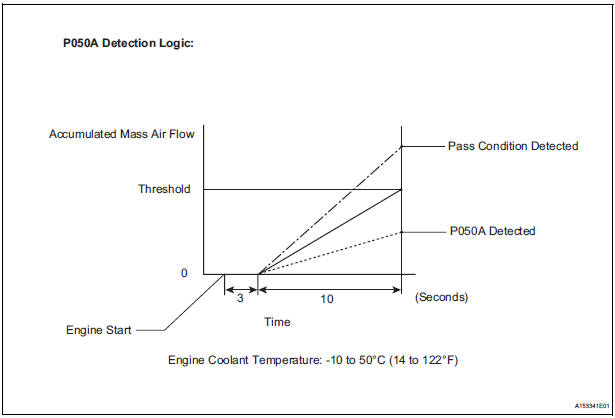

The DTC is designed to monitor the idle air control at cold start. When the engine is started at lower than 50°C (122°F) of the engine coolant temperature, the ECM measures the accumulated mass air flow at the engine idling. If it does not reach the criteria within 10 seconds, the ECM interprets this as a malfunction.

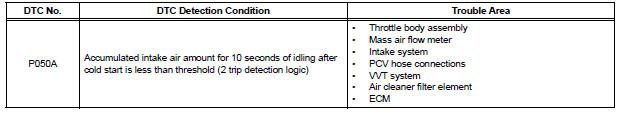

The MIL is illuminated and a DTC is set when the malfunction is detected in consecutive driving cycles (2 trip detection logic).
The ETCS (Electrical Throttle Control System) controls the idle speed. The ETCS operates the throttle actuator to open and close the throttle valve, and adjusts the intake air amount to achieve the target idle speed.
NOTICE: When the negative battery terminal is disconnected during inspection or repairs, the ISC (Idle Speed Control) learned values are cleared. ISC learning is performed when the engine has been warmed up and idled for 5 minutes because this DTC cannot be set after the ISC learned values cleared. |
MONITOR DESCRIPTION

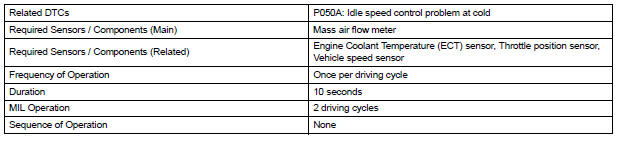

MONITOR STRATEGY

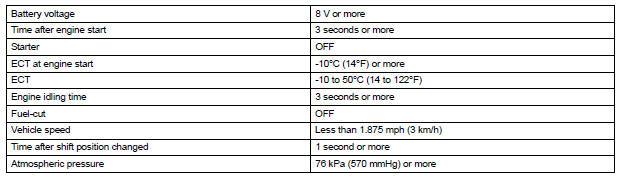

TYPICAL ENABLING CONDITIONS
TYPICAL MALFUNCTION THRESHOLDS
INSPECTION PROCEDURE
HINT:
Read freeze frame data using the intelligent tester. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air-fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.
1 CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P050A)
(a) Connect the intelligent tester to the DLC3.
(b) Turn the ignition switch to the ON position.
(c) Turn the tester on.
(d) Select the following the menu items: DIAGNOSIS / ENHANCED OBD II / DTC INFO / CURRENT CODES.
(e) Read the DTCs.
Result
HINT: If any DTCs other than P050A are output, troubleshoot those DTCs first.
2 READ VALUE USING INTELLIGENT TESTER (FUEL TRIM)
HINT:
Calculate the total fuel trim values to check the characteristic deviation of the mass air flow meter.
(a) Connect the intelligent tester to the DLC3.
(b) Start the engine.
(c) Turn the tester on.
(d) Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / SHORT FT #1 and LONG FT #1.
(e) Read the values displayed on the tester at engine idles.
(f) Add together the SHORT FT #1 and LONG FT #1 values to obtain the total FUEL TRIM.
OK: Total of SHORT FT #1 and LONG FT #1 values is between -20 % and 20 %.
3 PERFORM ACTIVE TEST USING INTELLIGENT TESTER (OPERATE OCV)
(a) Connect the intelligent tester to the DLC3.
(b) Start the engine and turn the tester on.
(c) Warm up the engine.
(d) Select the following menu items: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / VVT CTRL B1.
(e) Check the engine speed while operating the Oil Control Valve (OCV) using the tester.
OK
4 CHECK PCV HOSE CONNECTIONS
OK: PCV hose is connected correctly and is not damaged.
5 CHECK INTAKE SYSTEM
(a) Check the intake system for vacuum leakage.
OK: No leakage from intake system.
6 CHECK AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
(a) Visually check that the air cleaner filter element is not excessively contaminated with dirt or oil.
OK: Air cleaner filter element is not excessively contaminated with dirt or oil.
7 REPLACE MASS AIR FLOW METER
8 CHECK AND REPAIR VVT SYSTEM
9 REPAIR OR REPLACE PCV HOSE
10 REPAIR OR REPLACE INTAKE SYSTEM
11 REPLACE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
12 CHECK THROTTLE VALVE
(a) Check for deposits around the throttle valve and throttle valve condition.
OK: No deposits around throttle valve and throttle valve moves smoothly.
13 REPLACE ECM
14 REPAIR OR REPLACE THROTTLE BODY ASSEMBLY
15 CHECK WHETHER DTC OUTPUT RECURS (DTC P050A)
NOTICE: In this operation, the engine must be cold (the same level as the engine coolant temperature recorded in the freeze frame data). |
(a) Connect the intelligent tester to the DLC3.
(b) Turn the ignition switch to the ON position.
(c) Turn the tester on.
(d) Clear the DTCs (See page ES-39).
(e) Switch the ECM from normal mode to check mode using the tester (See page ES-43).
(f) Start the engine to idle for a minute.
OK: Stable fast idling.
(g) Read the DTCs.
OK: No DTC output.
END
