Toyota Sienna Service Manual: Front seat assembly  (for Manual Seat)

Toyota Sienna Service Manual / Seat / Front seat assembly  (for Manual Seat)

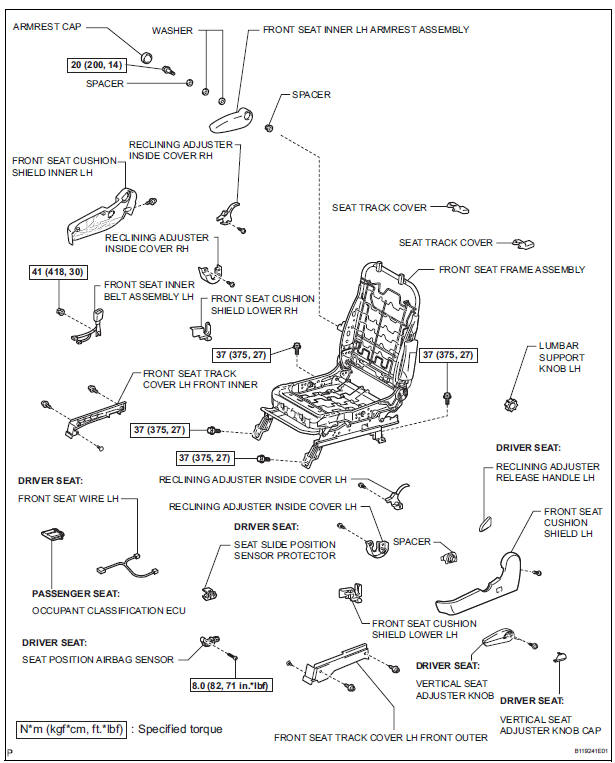

COMPONENTS

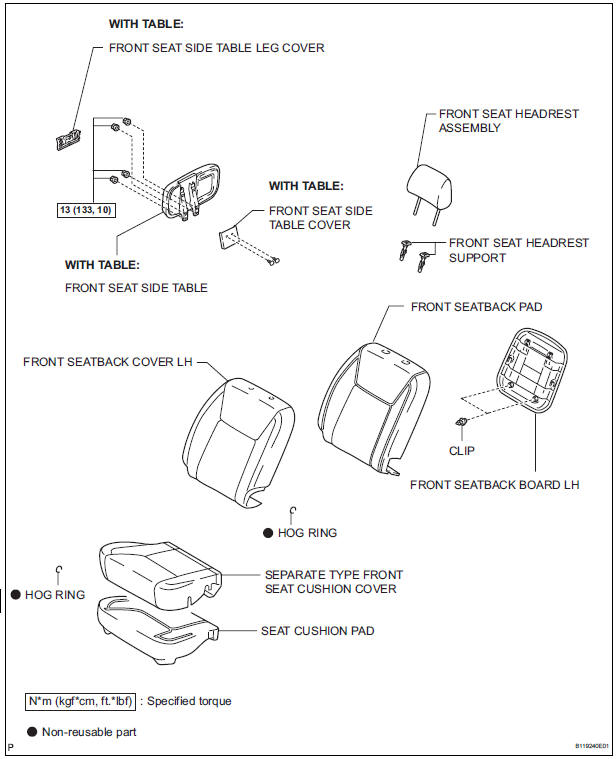

COMPONENTS

COMPONENTS

Installation
1. INSTALL FRONT SEAT ASSEMBLY RH  Place the seat assembly in the cabin. NOTICE: Be careful not to damage the body.  Connect the connectors under the seat assembly.  Tight ...

Removal
CAUTION:  Wear safety gloves, because the sharp surfaces of the seatback frame and seat adjuster may injure your hand.  Work must be started more than 90 seconds after the igniti ...

Other materials:

Installation
1. INSTALL ECM  Install the ECM with the 2 nuts. Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)  Connect the 5 ECM connectors. 2. INSTALL ECM (with 10 speakers system)  Install the ECM and stereo components amplifier with the 4 nuts. Torque: 5.5 N*m (56 kgf*cm, 49 ...

Installation
1. INSTALL FRONT AXLE ASSEMBLY LH (a) Install the 2 bolts, nuts and front axle assembly LH with the 2 bolts and nuts to the shock absorber assembly front LH. Torque: 230 N*m (2,350 kgf*cm, 170 ft.*lbf) NOTICE: Only when reusing the bolts and nuts, apply the small amount of engine oil ...

Removal
1. REMOVE REAR WHEEL 2. REMOVE REAR SHOCK ABSORBER CAP LH (a) Remove the shock absorber head cover. (b) Remove the shock absorber cap LH. 3. REMOVE SHOCK ABSORBER ASSEMBLY REAR LH (a) Support the rear axle beam with a jack. (b) Using a 6 mm hexagon wrench to hold the piston rod, ...
