Toyota Sienna Service Manual: Rear no. 2 Seat assembly (for Power Seat Type LH Side)

Toyota Sienna Service Manual / Seat / Rear no. 2 Seat assembly (for Power Seat Type LH Side)

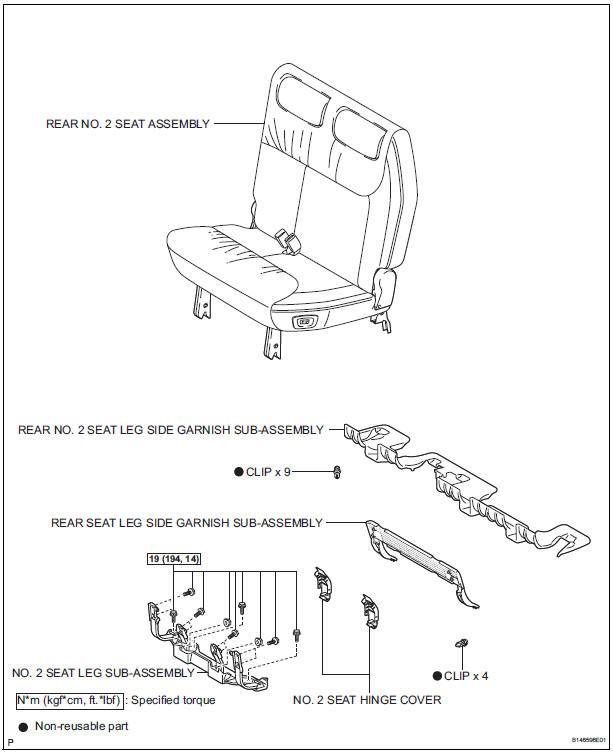

COMPONENTS

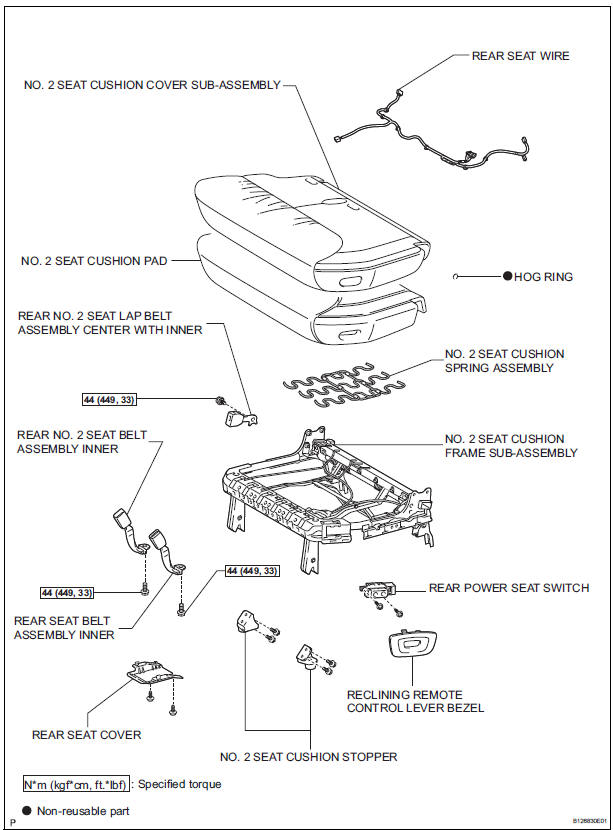

COMPONENTS

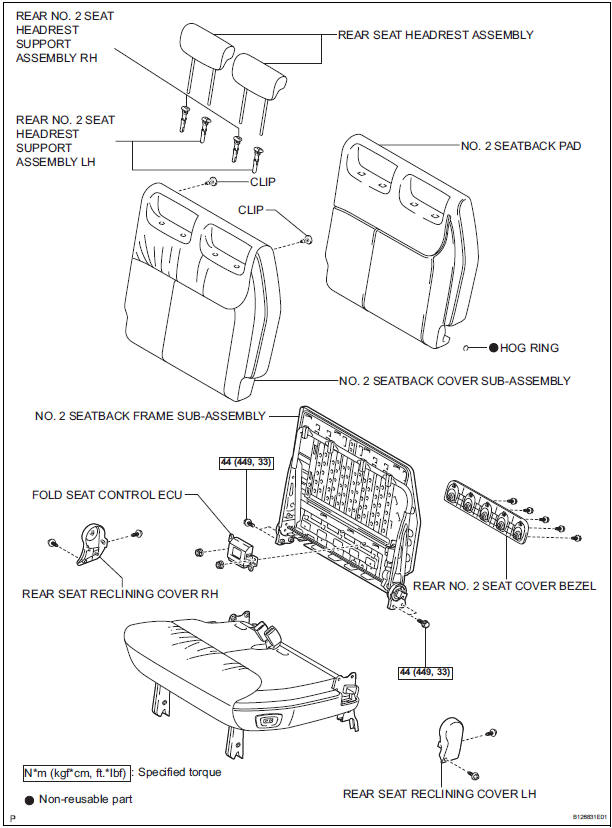

COMPONENTS

COMPONENTS

Installation
1. INSTALL REAR NO. 2 SEAT ASSEMBLY RH  Place the rear No. 2 seat assembly RH in the cabin. NOTICE: Be careful not to damage the body.  Install the seat with the bolt. Torque: ...

Removal
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL 2. REMOVE REAR NO. 2 SEAT LEG SIDE GARNISH SUB-ASSEMBLY  Disengage the 9 clips and remove the rear No. 2 seat leg side garnish sub-a ...
