Toyota Sienna Service Manual: Rear no. 2 Seat assembly (for Power Seat Type RH Side)

Toyota Sienna Service Manual / Seat / Rear no. 2 Seat assembly (for Power Seat Type RH Side)

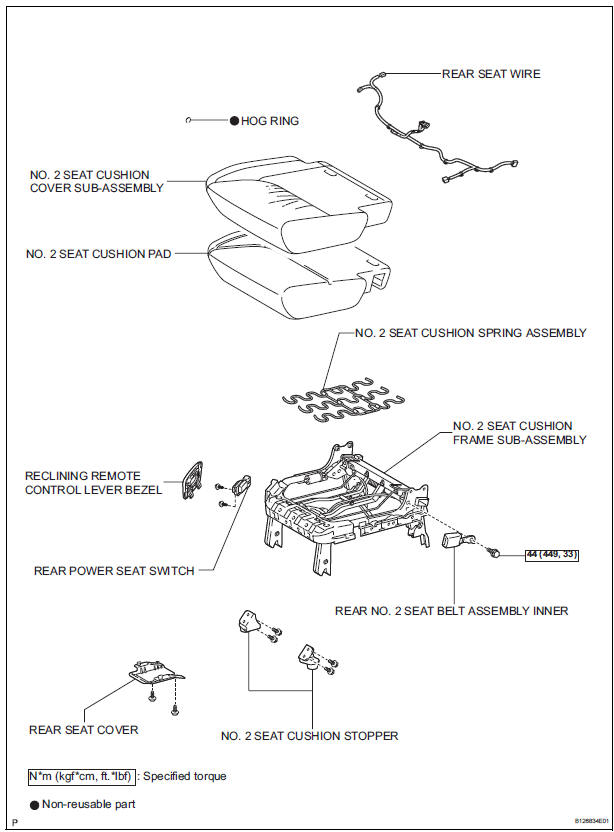

COMPONENTS

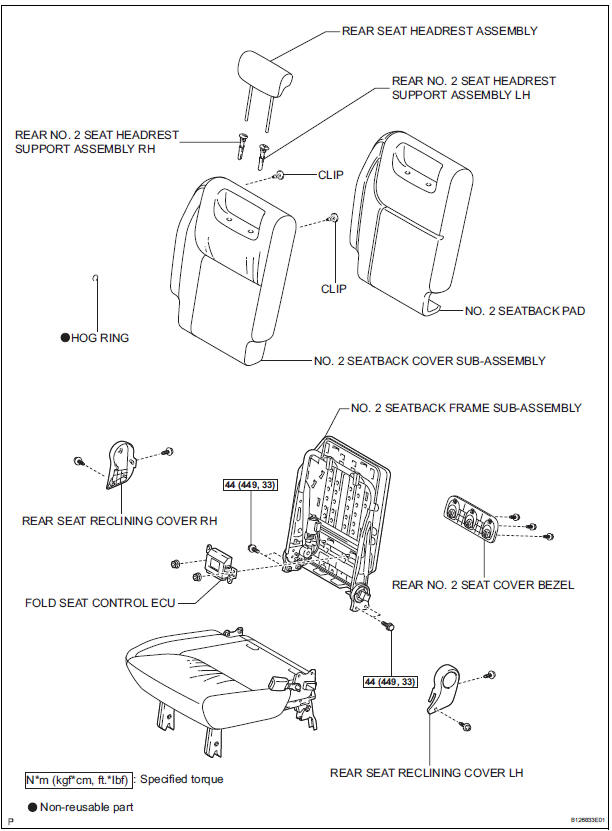

COMPONENTS

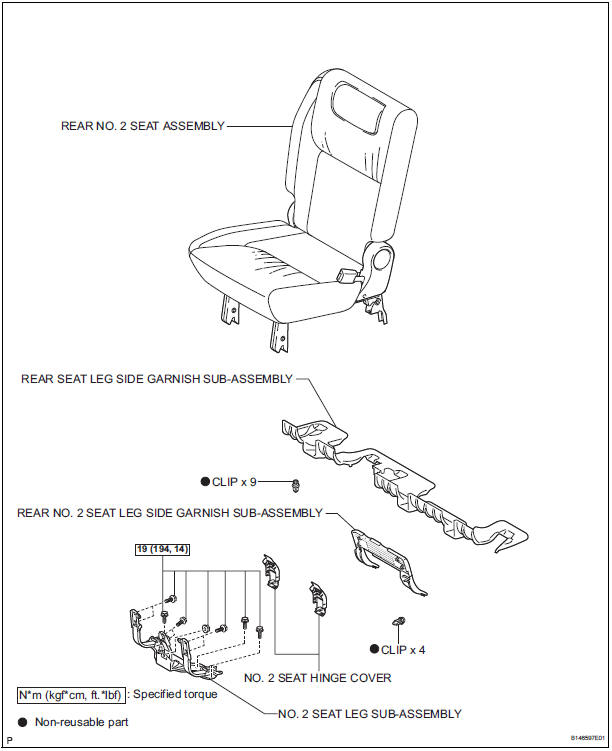

COMPONENTS

COMPONENTS

Installation
1. INSTALL REAR NO. 2 SEAT ASSEMBLY  Lock the seat leg rear to the floor striker.  Lock the seat leg front to the floor striker.  Install the rear No. 2 seat assembly with t ...

Removal
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL 2. REMOVE REAR NO. 2 SEAT LEG SIDE GARNISH SUB-ASSEMBLY  Disengage the 9 clips and remove the rear No. 2 seat leg side garnish sub-a ...
