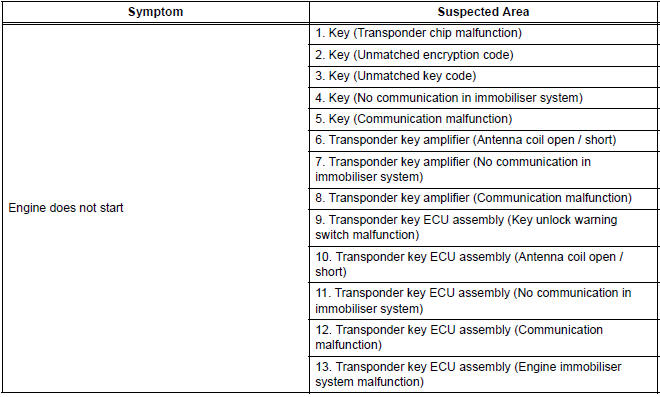

Toyota Sienna Service Manual: Problem symptoms table
ENGINE IMMOBILISER SYSTEM
- Terminals of ECU
- Diagnosis system
- DTC check / clear
- Data list / active test
- Diagnostic trouble code chart
Registration
1. DESCRIPTION OF CODE REGISTRATION
HINT:
The key has 2 codes: The key code (immobiliser code)
and the wireless code. Both of these codes need to be
registered. Refer to page for the wireless code ...
Terminals of ECU
1. CHECK TRANSPONDER KEY AMPLIFIER
Disconnect the I14 amplifier connector and measure
the resistance between the terminal of the wire
harness side connector and body ground.
If the ...
