Toyota Sienna Service Manual: Rear disc brake

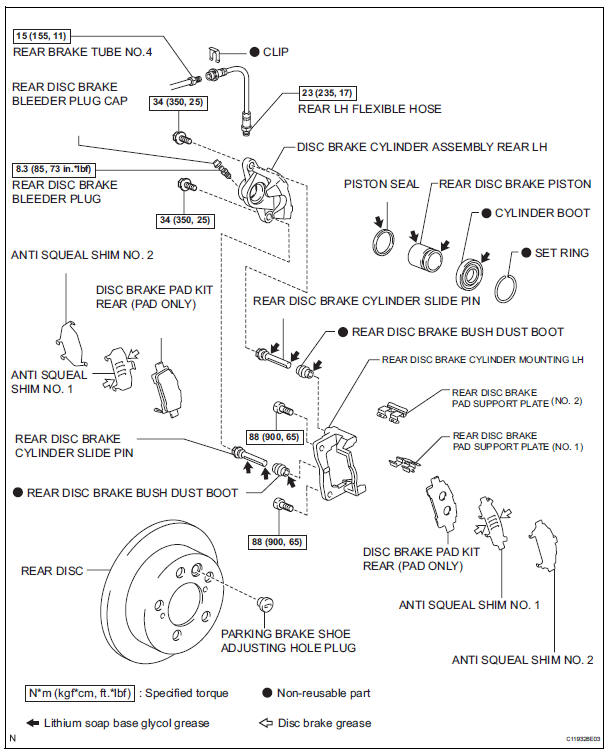

COMPONENTS

Rear disc brake

Installation
HINT: Install the RH side by the same procedure as the LH side. 1. INSTALL FRONT DISC BRAKE CYLINDER SLIDE BUSH (a) Apply the lithium soap base glycol grease to a new front disc brake cylinder ...

Removal
HINT: Remove the RH side by the same procedure as the LH side. 1. REMOVE REAR WHEEL 2. DRAIN BRAKE FLUID NOTICE: Wash the brake fluid off immediately if it attaches to any painted surface. 3. S ...
