Toyota Sienna Service Manual: Diagnostic trouble code chart
1. DTCS FOR OCCUPANT CLASSIFICATION SYSTEM

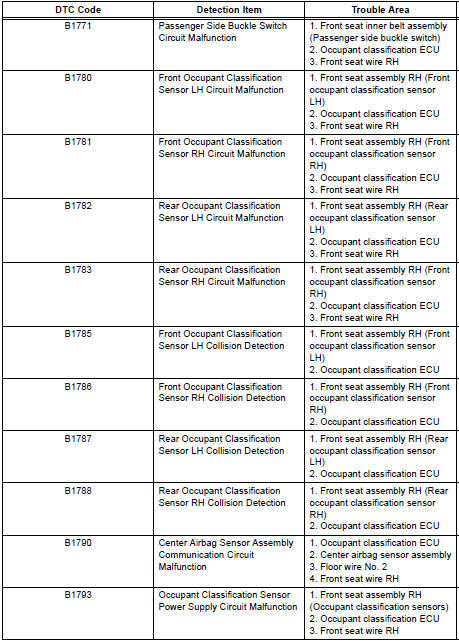

If a trouble code is displayed during the DTC check, check the circuit listed for the code in the table below (proceed to the page listed for that circuit).
HINT: When DTC B1150/23 is detected as a result of troubleshooting for the airbag system, perform troubleshooting for the Occupant Classification System as shown in the chart below.
Occupant Classification ECU
- Passenger Side Buckle Switch Circuit Malfunction
- Front Occupant Classification Sensor LH Circuit Malfunction
- Front Occupant Classification Sensor RH Circuit Malfunction
- Rear Occupant Classification Sensor LH Circuit Malfunction
- Rear Occupant Classification Sensor RH Circuit Malfunction
- Front Occupant Classification Sensor LH Collision Detection
- Front Occupant Classification Sensor RH Collision Detection
- Rear Occupant Classification Sensor LH Collision Detection
- Rear Occupant Classification Sensor RH Collision Detection
- Center Airbag Sensor Assembly Communication Circuit Malfunction
- Occupant Classification Sensor Power Supply Circuit Malfunction

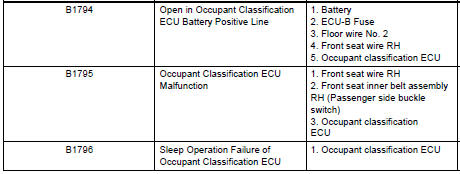

- Open in Occupant Classification ECU Battery Positive Line
- Occupant Classification ECU Malfunction
- Sleep Operation Failure of Occupant Classification ECU
- Trouble in Passenger Airbag ON / OFF Indicator
