BMW 3 Series 2018-2022 Owners Manual: Comfort Access

Concept

The vehicle can be accessed without operating the vehicle key.

Carrying the vehicle key with you, e.g., in your pants pocket, is sufficient.

The vehicle automatically detects the vehicle key when it is in close proximity or in the car's interior.

Unlocking the vehicle

Entering

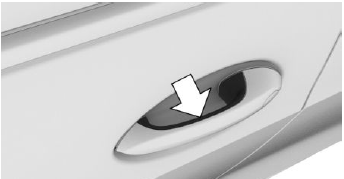

Grasp the handle of a vehicle door completely.

Locking the vehicle

Entering

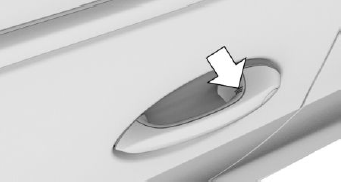

Touch the grooved surface on the handle of a closed vehicle door with your finger for approx. 1 second without grasping the door handle.

Opening and closing the trunk lid with no-touch activation

Concept

The trunk lid can be opened and closed with no-touch activation using the vehicle key you are carrying.

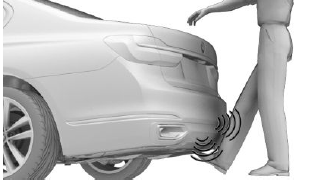

Performing the foot movement

1. Stand in the middle behind the vehicle at approx. one arm's length away from the rear of the vehicle.

2. Wave a foot under the vehicle in the direction of travel and immediately pull it back. With this movement, the leg must pass through the ranges of both sensors.

Entering

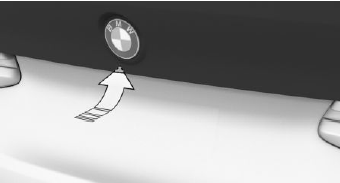

Trunk lid

Opening

Entering

Without automatic tailgate operation: closing

Close the trunk lid manually.

With automatic tailgate operation: closing

Press the button on the inside of the trunk lid.
