BMW 3 Series 2018-2023 Owners Manual: High beams, headlight flasher, turn signal

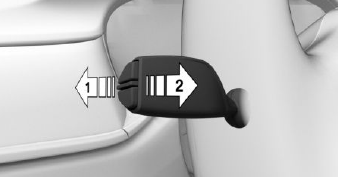

High beams, headlight flasher
Push the lever forward or pull it backward.
- High beams on, arrow 1.
The high beams light up when the low beams are switched on.
- High beams off/headlight flasher, arrow 2.

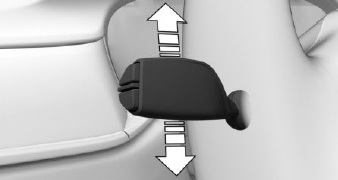

Turn signal
- On: press the lever past the resistance point.
- Off: press the lever past the resistance point in the opposite direction.
- Triple turn signal activation: lightly tap the lever up or down.
- Brief signaling: press the lever to the resistance point and hold it there for as long as you want the turn signal to flash.
