Concept
The following settings can be stored and, if necessary, retrieved using the memory function:
General information
Two memory locations with different settings can be set for each driver profile.
The following settings are not stored:
Safety information
Warning Using the memory function while driving can lead to unexpected seat or steering wheel movements. Vehicle control could be lost.
There is a risk of accident. Only retrieve the memory function when the vehicle is stationary.
Warning There is a risk of jamming when moving the seats. There is a risk of injury or risk of damage to property. Make sure that the area of movement of the seat is clear prior to any adjustment.
Overview

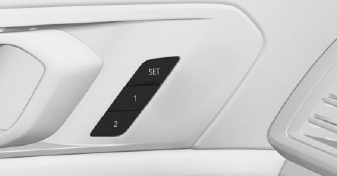

The memory buttons are located on the driver's door.
Storing
1. Set the desired position.
2. Press the button. The writing on
the
button lights up.
3. Press desired button 1 or 2 while the LED is lit. A signal sounds.
Calling up settings
Press the desired button 1 or 2.
The stored position is called up.
The procedure stops when a switch for setting the seat is pressed or one of the memory buttons is pressed again.
Once underway, adjustment of the seat position on the driver's side is disabled after a short while.
