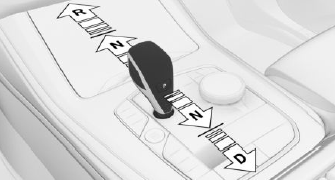

Engaging selector lever position D, N, R
With the driver's safety belt fastened, briefly push the selector lever in the desired direction, past a resistance point, if needed. The selector lever returns to the center position in each case.
To prevent the vehicle from creeping after you select a drive mode or reverse, maintain pressure on the brake pedal until you are ready to start.
A selector lever lock prevents the inadvertent shifting to selector lever position R or the inadvertent shifting from selector lever position P.
Engage selector lever position R only when the vehicle is stationary.

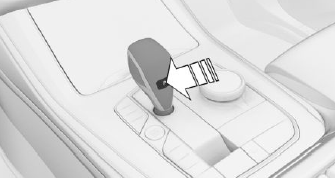

Releasing the selector lever lock
Press the button.

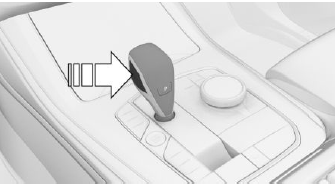

Engaging P
Engage selector lever position P only when the vehicle is stationary.
Press button P.
Steptronic transmission, Sport program and manual mode

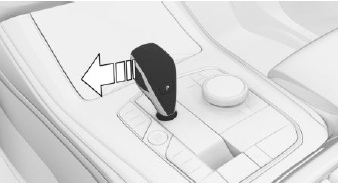

Activate the Sport program/manual mode: Press the selector lever to the left from selector lever position D.
Manual mode:
End the sport program/manual mode: Push the selector lever to the right.
Player Error
DTC 58-44 Player Error
DTC 80-44 Player Error
DESCRIPTION
DTC No.
DTC Detection Condition
Trouble Area
58-44
Map player error is detected
Radio and navigation assembly
80-44
Map player error is detected.
INSPECTION PROCEDURE
HINT: ...
Terminals of ECU
1. CHECK TRANSPONDER KEY AMPLIFIER
Disconnect the I14 amplifier connector and measure
the resistance between the terminal of the wire
harness side connector and body ground.
If the result is not as specified, there may be a
malfunction on the wire harness side.
Reconnec ...
Disassembly
1. REMOVE OIL PUMP RELIEF VALVE
(A) using a 27 mm socket wrench, remove the relief
valve plug.
(B) remove the valve spring and oil pump relief valve.
2. REMOVE OIL PUMP COVER
(a) Remove the 8 bolts, oil pump cover and oil pump
rotor set. ...
