Toyota Sienna Service Manual: Diagnostic trouble code chart
1. DTCS FOR AIRBAG SYSTEM
If a malfunction code is displayed during the DTC check, check the circuit listed for the code in the table below (Proceed to the page listed for that circuit).
HINT:
- When the SRS warning light remains on and the DTC output is the normal system code, a voltage source drop is likely to occur. This malfunction is not stored in memory by the center airbag sensor assembly. If the warning light will automatically go off.
- When 2 or more codes are indicated, the code with the lower number appears first.
- If a code is not listed on the display chart, the center airbag sensor assembly may have failed.
- In the case of any malfunction concerning an open circuit, short to ground, or short to B+ due to a squib, other trouble codes may not be detected. In this case, repair the malfunction currently indicated and then perform malfunction diagnosis again.
- When DTC B1150/23 is detected as a result of troubleshooting for the Airbag System, perform troubleshooting for the Occupant Classification System as shown in the chart below.
- Mark in the check mode column:
*1: DTC is not corresponding to the check mode.
*2: DTC is corresponding to the check mode. - DTC which has the mark of the *3 is output only the equipped car of side airbag.
AIRBAG SYSTEM

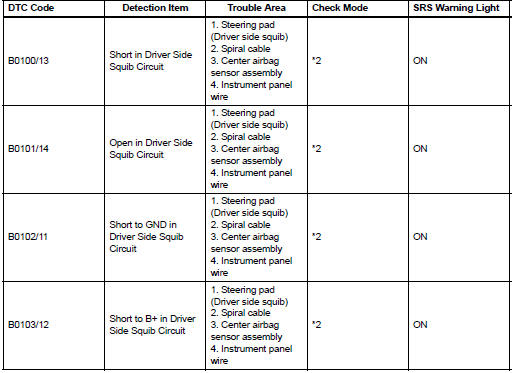

- Short in Driver Side Squib Circuit
- Open in Driver Side Squib Circuit
- Short to GND in Driver Side Squib Circuit
- Short to B+ in Driver Side Squib Circuit

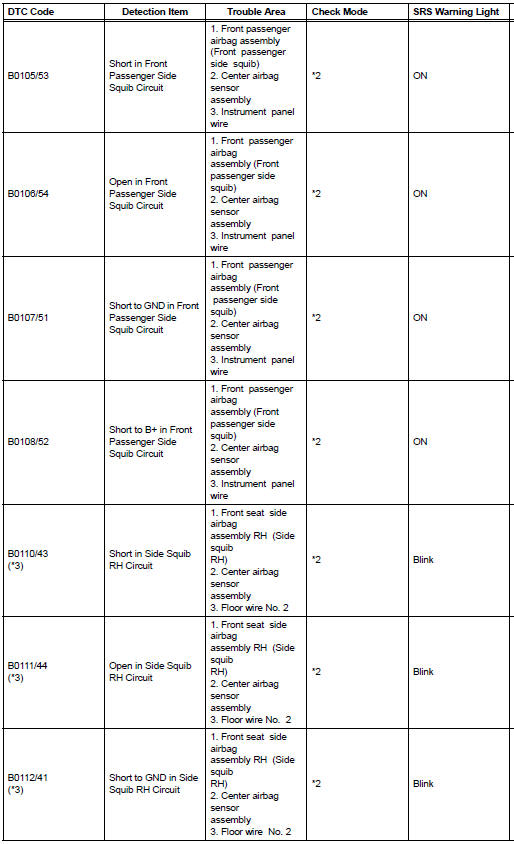

- Short in Front Passenger Side Squib Circuit
- Open in Front Passenger Side Squib Circuit
- Short to GND in Front Passenger Side Squib Circuit
- Short to B+ in Front Passenger Side Squib Circuit
- Short in Side Squib RH Circuit
- Open in Side Squib RH Circuit
- Short to GND in Side Squib RH Circuit
- Short to B+ in Side Squib RH Circuit
- Short in Side Squib LH Circuit
- Open in Side Squib LH Circuit
- Short to GND in Side Squib LH Circuit
- Short to B+ in Side Squib LH Circuit
- Seat Belt Buckle Switch LH Circuit Malfunction
- Short in Front Pretensioner Squib RH Circuit

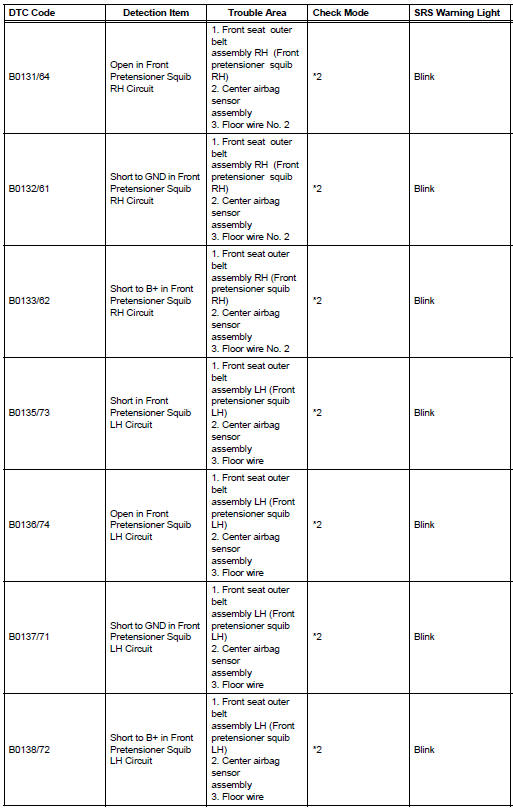

- Open in Front Pretensioner Squib RH Circuit
- Short to GND in Front Pretensioner Squib RH Circuit
- Short to B+ in Front Pretensioner Squib RH Circuit
- Short in Front Pretensioner Squib LH Circuit
- Open in Front Pretensioner Squib LH Circuit
- Short to GND in Front Pretensioner Squib LH Circuit
- Short to B+ in Front Pretensioner Squib LH Circuit

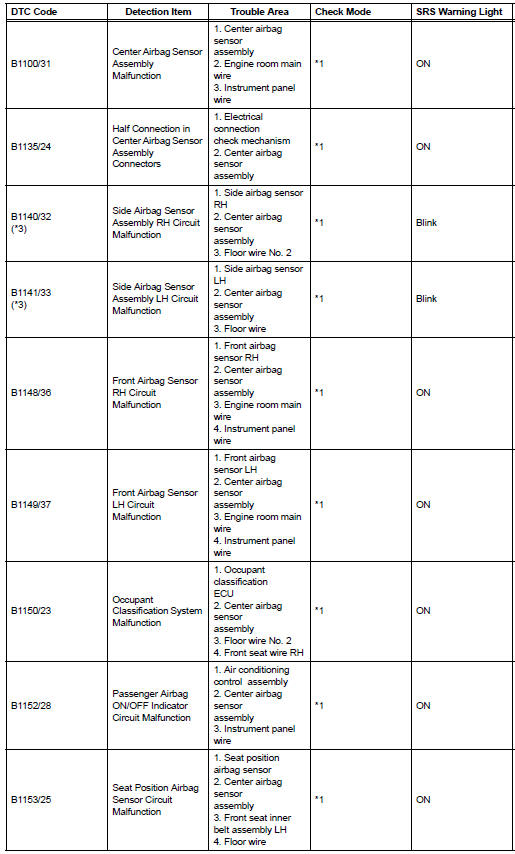

- Center Airbag Sensor Assembly Malfunction
- Half Connection in Center Airbag Sensor Assembly Connectors
- Side Airbag Sensor Assembly RH Circuit Malfunction
- Side Airbag Sensor Assembly LH Circuit Malfunction
- Front Airbag Sensor RH Circuit Malfunction
- Front Airbag Sensor LH Circuit Malfunction
- Occupant Classification System Malfunction
- Passenger Airbag ON/OFF Indicator Circuit Malfunction
- Seat Position Airbag Sensor Circuit Malfunction

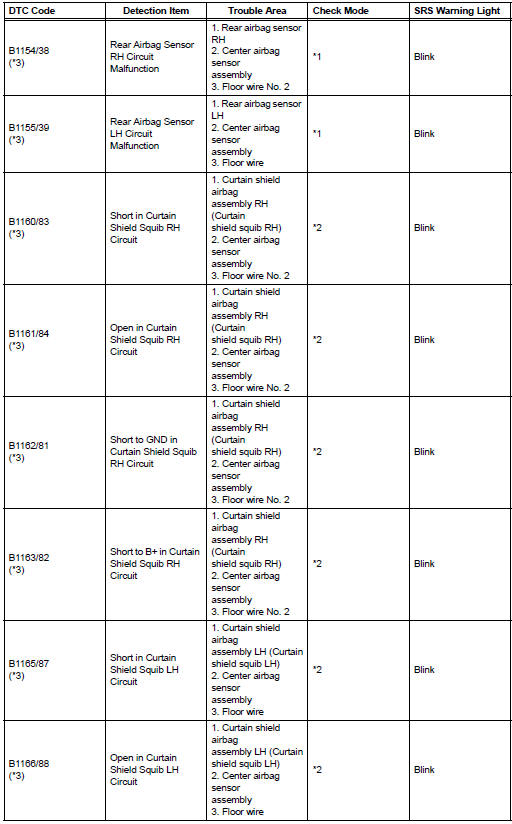

- Rear Airbag Sensor RH Circuit Malfunction
- Rear Airbag Sensor LH Circuit Malfunction
- Short in Curtain Shield Squib RH Circuit
- Open in Curtain Shield Squib RH Circuit
- Short to GND in Curtain Shield Squib RH Circuit
- Short to B+ in Curtain Shield Squib RH Circuit
- Short in Curtain Shield Squib LH Circuit
- Open in Curtain Shield Squib LH Circuit

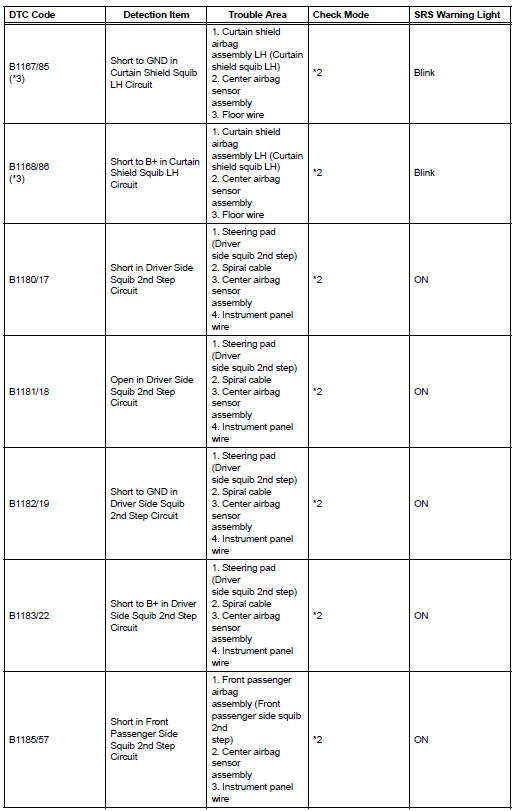

- Short to GND in Curtain Shield Squib LH Circuit
- Short to B+ in Curtain Shield Squib LH Circuit
- Short in Driver Side Squib 2nd Step Circuit
- Open in Driver Side Squib 2nd Step Circuit
- Short to GND in Driver Side Squib 2nd Step Circuit
- Short to B+ in Driver Side Squib 2nd Step Circuit
- Short in Front Passenger Side Squib 2nd Step Circuit

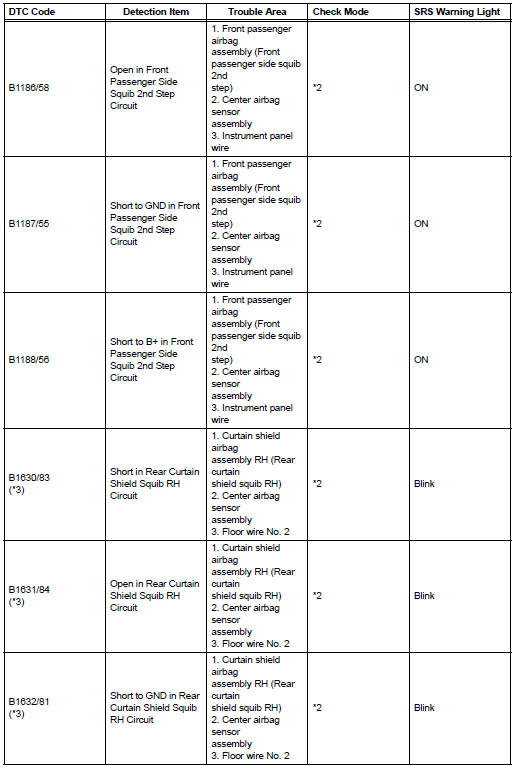

- Open in Front Passenger Side Squib 2nd Step Circuit
- Short to GND in Front Passenger Side Squib 2nd Step Circuit
- Short to B+ in Front Passenger Side Squib 2nd Step Circuit
- Short in Rear Curtain Shield Squib RH Circuit
- Open in Rear Curtain Shield Squib RH Circuit
- Short to GND in Rear Curtain Shield Squib RH Circuit

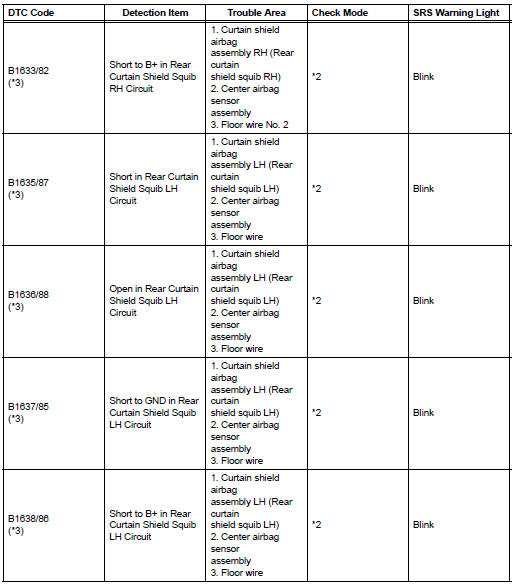

- Short to B+ in Rear Curtain Shield Squib RH Circuit
- Short in Rear Curtain Shield Squib LH Circuit
- Open in Rear Curtain Shield Squib LH Circuit
- Short to GND in Rear Curtain Shield Squib LH Circuit
- Short to B+ in Rear Curtain Shield Squib LH Circuit
- SRS Warning Light Remains ON
- SRS Warning Light does not Come ON
- Diagnosis Circuit
