Toyota Sienna Service Manual: Diagnostic trouble code chart

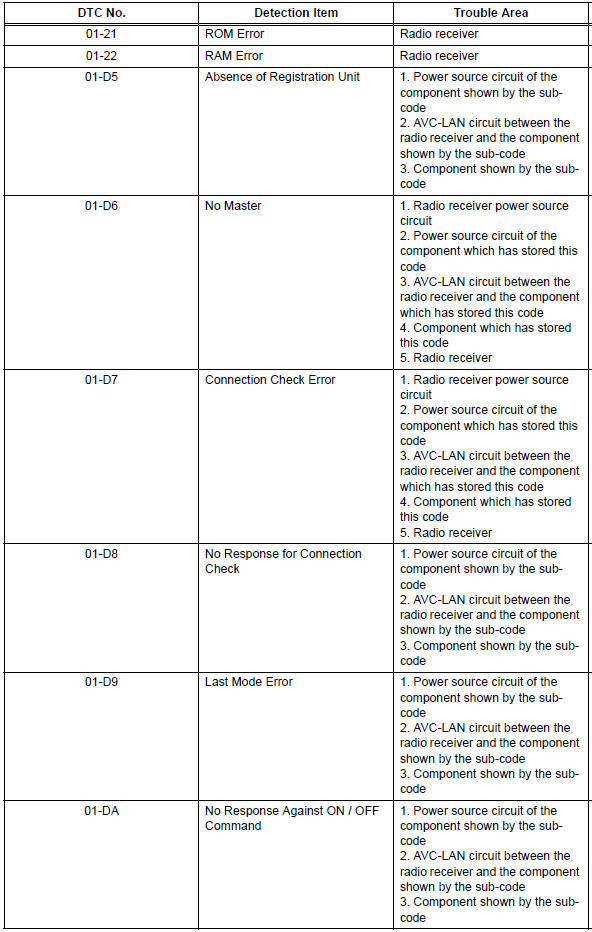

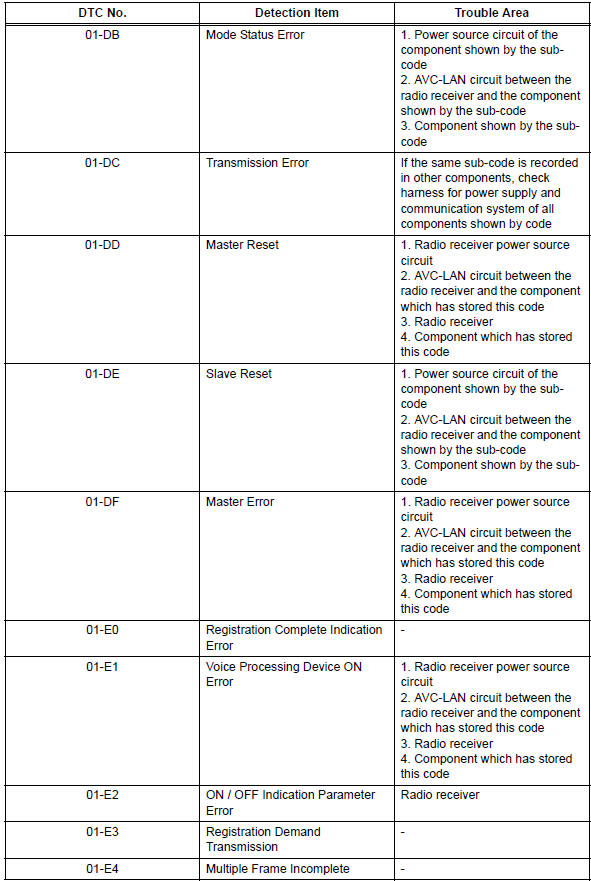

COMMUNICATION DIAGNOSIS:

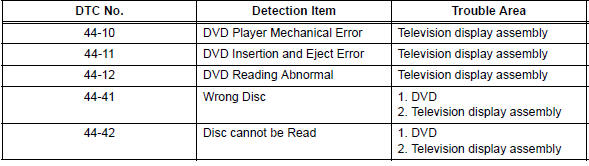

DVD PLAYER:

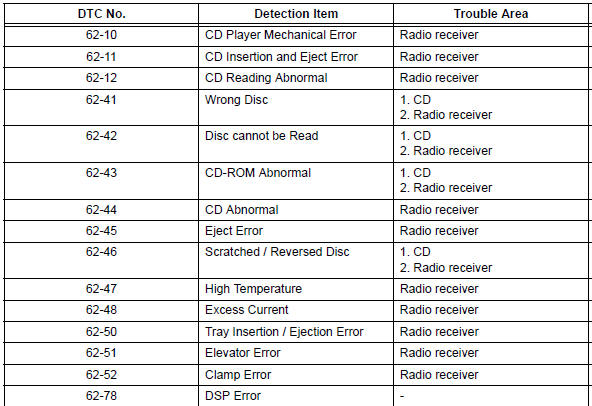

CD PLAYER

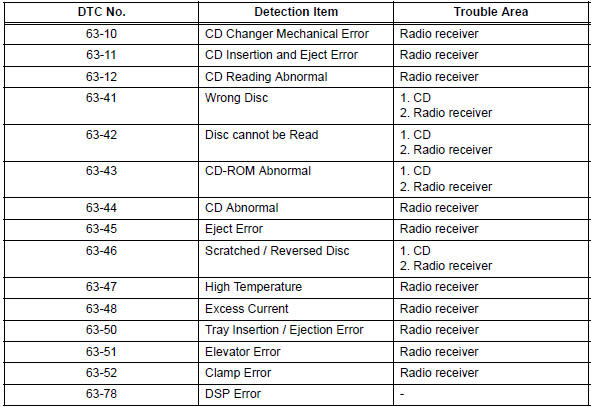

IN-DASH CD CHANGER
- ROM Error/ RAM Error
- Absence of Registration Unit/ No Response for Connection Check/ Last Mode Error/ No Response Against ON / OFF Command/ Mode Status Error/ Slave Reset
- No Master/ Connection Check Error
- Transmission Error
- Master Reset/ Voice Processing Device ON Error
- Master Error
- Registration Complete Indication Error/ Registration Demand Transmission/ Multiple Frame Incomplete
- ON / OFF Indication Parameter Error
- DVD Player Mechanical Error/ DVD Insertion and Ejection Error/ DVD Reading Abnormal
- Wrong Disc/ Disc cannot be Read

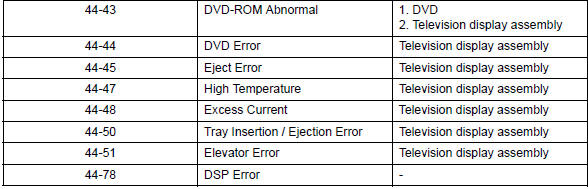

- DVD-ROM Abnormal
- DVD Error/ Excess Current/ Tray Insertion / Ejection Error
- Eject Error/ Elevator Error/ Clamp Error
- Scratched / Reversed Disc
- High Temperature
- DSP Error

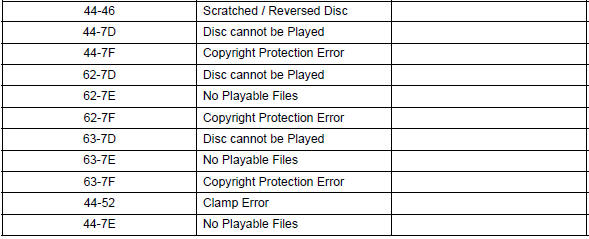

- Disc cannot be Played/ No Playable Files/ Copyright Protection Error
- CD Player Mechanical Error/ CD Insertion and Ejection Error/ CD Reading Abnormal/ CD Changer Mechanical Error/ CD Insertion and Ejection Error/ CD Reading Abnormal
- Wrong Disc/ Disc cannot be Read/ Wrong Disc/ Disc cannot be Read
- CD-ROM Abnormal/ CD-ROM Abnormal
- CD Abnormal/ Excess Current/ Tray Insertion / Ejection Error/ CD Abnormal/ Excess Current/ Tray Insertion / Ejection Error
- Eject Error/ Elevator Error/ Clamp Error/ Eject Error/ Elevator Error/ Clamp Error
- Scratched / Reversed Disc
- High Temperature
- DSP Error/ DSP Error
- Disc cannot be Played/ No Playable Files/ Copyright Protection Error/ Disc cannot be Played/ No Playable Files/ Copyright Protection Error
- Noise Occurs
- Pressing Power Switch does not Turn on System
- No Sound can be Heard from Speakers
- Sound Quality is Bad Only when CD is Played (Volume is Too Low)
- CD cannot be Ejected
- CD cannot be Inserted / Played or CD is Ejected Right After Insertion
- CD Sound Skips
- Radio Broadcast cannot be Received or Poor Reception
- Poor Sound Quality in All Modes (Low Volume)
- Vehicle Speed Signal Circuit between Radio Receiver and Combination Meter
- Steering Pad Switch Circuit
- Illumination Circuit
- Speaker Circuit
- Sound Signal Circuit between Radio Receiver and Stereo Component Amplifier
- Sound Signal Circuit between Radio Receiver and Television Display Assembly
- Sound Signal Circuit between Radio Receiver and Stereo Jack Adapter
- Mute Signal Circuit between Radio Receiver and Stereo Component Amplifier
- Mute Signal Circuit between Radio Receiver and Television Display Assembly
- AVC-LAN Circuit
- Vehicle Speed Signal Circuit between Multi-display and Combination Meter
- Vehicle Speed Signal Circuit between Stereo Component Amplifier and Combination Meter
- Radio Receiver Communication Error
- Stereo Component Amplifier Communication Error
- Television Display Assembly Communication Error
- Radio Receiver Power Source Circuit
- Stereo Component Amplifier Power Source Circuit
DTC check / clear
HINT: If the system cannot enter the diagnostic mode,
inspect all AVC-LAN communication signals and repair or replace problem parts.
1. STARTING DIAGNOSTIC MODE
Turn the ignition swit ...
ROM Error/ RAM Error
DTC 01-21 ROM Error
DTC 01-22 RAM Error
DESCRIPTION
INSPECTION PROCEDURE
HINT:
After the inspection is completed, clear the DTCs.
1 REPLACE RADIO RECEIVER
END ...
